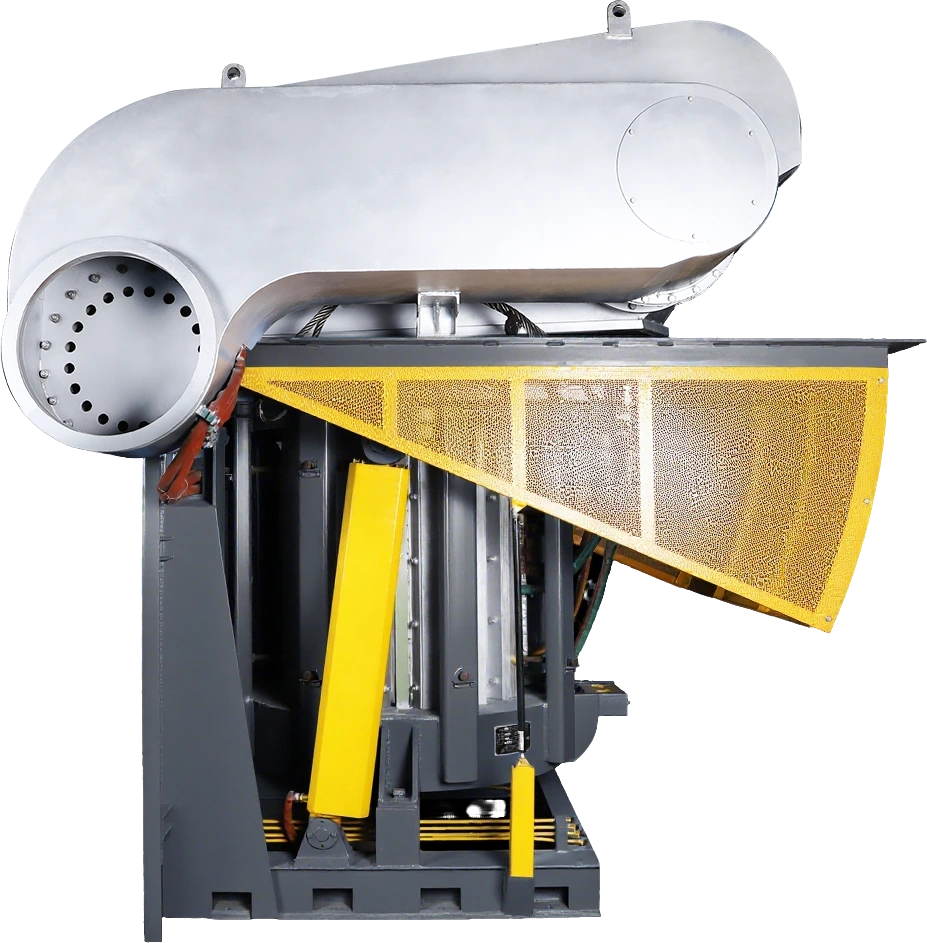

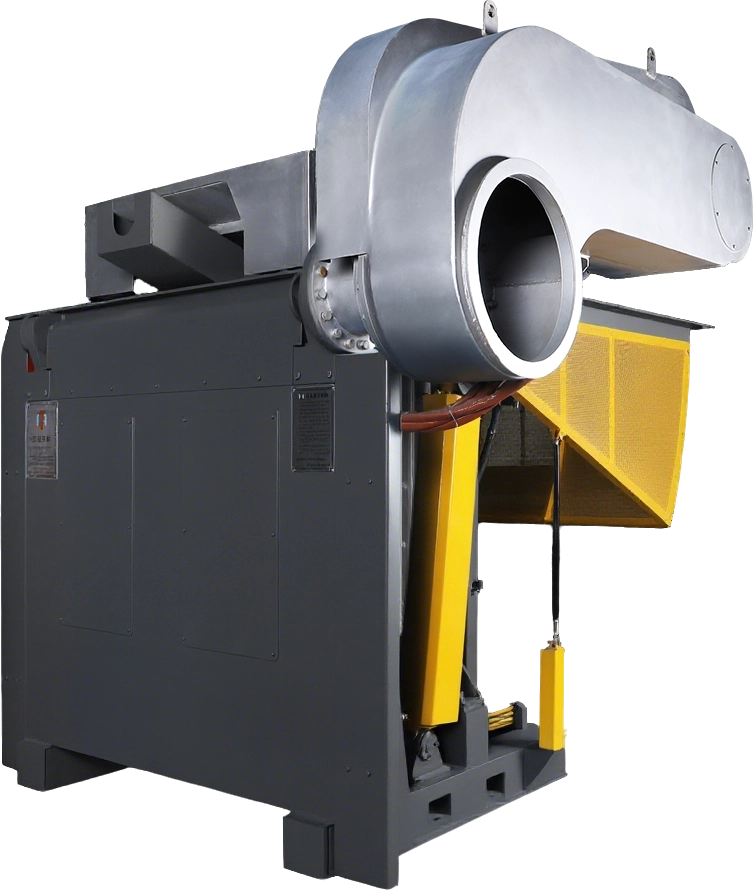

A steel shell induction furnace for heavy-duty foundry operations must do more than melt metal. In a real foundry, the furnace faces repeated charging, high-temperature cycles, slag removal, sample testing, hydraulic tilting, pouring, cooling pressure, and lining maintenance. Buyers usually care about furnace body strength, melting efficiency, magnetic leakage, operator safety, maintenance cost, and long-term production excerpt …
A steel shell induction furnace for heavy-duty foundry operations must do more than melt metal. In a real foundry, the furnace faces repeated charging, high-temperature cycles, slag removal, sample testing, hydraulic tilting, pouring, cooling pressure, and lining maintenance. Buyers usually care about furnace body strength, melting efficiency, magnetic leakage, operator safety, maintenance cost, and long-term production stability. For steel, cast iron, copper alloys, aluminum alloys, and mixed scrap melting, the furnace structure often decides whether daily production runs smoothly or stops too often.
Heavy-duty foundry work is not the same as occasional small-batch melting. A foundry melting several heats per shift needs an industrial induction furnace that can handle impact from heavy charge materials, heat expansion, furnace lining wear, and continuous pouring schedules. The equipment must also work in a dusty, hot, and noisy workshop where operators need clear movement, stable controls, and safe access around the furnace platform.
A metal melting furnace for foundry production should support stable melting speed, consistent bath temperature, reliable cooling, and safe furnace movement. If the furnace body is weak, vibration and deformation may increase maintenance pressure. If the tilting system is unstable, pouring becomes harder to control. If the cooling circuit is poorly designed, the induction coil and power system may face unnecessary risk. These are practical concerns, not catalog details.
A steel shell furnace is preferred in many heavy-duty foundry furnace projects because the furnace body provides stronger mechanical support. The steel shell supports the induction coil, refractory lining, magnetic yoke, tilting frame, and molten metal load. During repeated charging and pouring, this rigid structure helps the furnace keep its shape and reduces stress on key components.
SHENNAI provides steel shell induction melting furnace solutions for different production scales and workshop layouts. The cage-type steel shell furnace is available from 1T to 90T for medium and large-capacity melting projects, while the standard hydraulic steel shell furnace covers 250kg to 60T for foundries, casting plants, rolling mills, metallurgy workshops, and scrap metal recycling lines. For small-capacity melting applications, the reducer-type steel shell furnace can be customized up to 750kg. With these furnace body options, buyers can choose a suitable melting solution according to batch weight, metal type, pouring requirements, factory layout, and output target.
One of the main steel shell furnace advantages is durability under continuous foundry melting. A large capacity induction furnace may run through charging, melting, slagging, testing, and pouring many times in one day. A stronger furnace body helps protect the coil and lining during these cycles.
SHENNAI steel shell furnace designs use a new flat-wound coil structure, integrated casting, profiled copper tubes with thickness up to 8mm at the thickest point, and a high-pressure insulated cyclone smoke board with 6mm to 8mm thickness. These details are important for a durable induction furnace because coil protection, vibration control, and heat resistance affect service life.
In a heavy duty induction melting furnace, energy loss is not only about the power cabinet. The furnace body and magnetic design also matter. A magnetic yoke made of silicon steel sheets helps shield magnetic field lines from the induction coil, reduce magnetic leakage, improve thermal efficiency, and increase output.
For a plant running several heats per shift, a low magnetic leakage furnace can support better furnace utilization. Under suitable working conditions, this structure can help save 5% to 8% operating time. That difference may affect ladle scheduling, worker arrangement, casting rhythm, and monthly output.
Molten metal pouring needs smooth and predictable movement. A hydraulic tilting induction furnace is more suitable for heavy foundry work than a simple light-duty tilting structure because it provides steadier control during high-temperature pouring. SHENNAI steel shell furnace designs can use double hydraulic cylinders, with stable movement and adjustable running speed.
For molten metal pouring safety, the value is clear. Operators can position the stream more accurately, reduce sudden movement, and work with greater confidence near the pouring area. In large capacity melting furnace projects, this safety factor should be considered early, not after installation.
Modern induction furnace safety features are closely connected with control and cooling systems. SHENNAI open-type steel shell melting furnace can include self-checking functions, real-time monitoring, leakage alarm, PLC control, carbon-free hoses, 304 stainless steel water distributors, and 304 stainless steel clamps. These details matter when a foundry needs long-shift or 24-hour continuous operation.
A cooling system for induction furnace equipment should be checked together with water pressure, water temperature, pipe quality, and cooling tower capacity. A stable water circuit protects the induction coil and helps reduce unplanned shutdowns.
The comparison between steel shell vs aluminum shell furnace usually appears during early purchasing. An aluminum shell induction furnace can be suitable for smaller capacity, lighter installation, and budget-sensitive melting jobs. It is practical when production is not too heavy and furnace movement is less demanding.
For heavy-duty foundry operations, a steel shell furnace usually offers better long-term value. It is more suitable for large capacity induction melting furnace projects, continuous production, safer hydraulic tilting, stronger body support, and lower magnetic leakage. The initial price should not be the only factor. Downtime, lining damage, unstable pouring, and frequent maintenance can cost more than the purchase difference.
Induction furnace capacity selection should begin with real production data. Buyers need to calculate batch weight, daily output, heats per shift, casting size, metal loss, and future expansion. A furnace that is too small may slow the casting line. A furnace that is too large may waste energy if the workshop cannot use molten metal fast enough.
The medium frequency power supply should match the furnace tonnage and expected melting time. Power rating affects melting speed, power factor, energy use, and process stability. SHENNAI steel melting furnace information commonly references 40–60 minutes melting time, while actual results depend on capacity, material type, charge density, lining condition, and operating practice.
A foundry furnace safety review should include hydraulic tilting, anti-drop protection, leakage alarm, PLC control, cooling water circuit, refractory lining access, and spare parts support. In heavy-duty production, maintenance access is part of the real cost. A furnace that is hard to inspect or repair may create longer shutdowns than expected.
A foundry should choose a steel shell induction furnace when production involves medium or large capacity melting, repeated heats, heavy charge materials, high-temperature pouring, continuous operation, or strict safety requirements. It is especially suitable for steel, cast iron, copper alloy, aluminum alloy, and scrap metal melting where the furnace body must work under long-term mechanical and thermal stress.
For small-batch or low-frequency melting, a lighter furnace may still be considered. For heavy-duty foundry production, however, steel shell structure is usually the safer and more durable choice.
For heavy-duty foundry operations, a steel shell induction furnace is preferred because it provides stronger furnace body support, safer hydraulic tilting, lower magnetic leakage, better cooling compatibility, and more reliable continuous operation. Buyers should evaluate metal type, furnace capacity, melting speed, power supply, cooling system, safety features, maintenance access, and long-term production plans before choosing a furnace supplier. SHENNAI provides steel shell induction melting furnace solutions for foundry, metallurgy, machinery manufacturing, metal processing, recycling, and laboratory applications, helping industrial buyers match furnace body, power supply, cooling system, and control package to real production conditions.
Q1: Why are steel shell furnaces preferred for heavy-duty foundry operations?
A1: Steel shell furnaces are preferred for heavy-duty foundry operations because they provide stronger furnace body support, safer hydraulic tilting, lower magnetic leakage, and better durability for continuous melting and pouring.
Q2: Is a steel shell induction furnace better than an aluminum shell furnace?
A2: A steel shell induction furnace is usually better for large capacity melting, heavy-duty foundry work, and long-term continuous operation. An aluminum shell furnace is more suitable for smaller, lighter, and more budget-sensitive projects.
Q3: What capacity steel shell furnace should a foundry choose?
A3: A foundry should choose steel shell furnace capacity based on batch weight, daily output, heats per shift, metal type, casting size, power supply condition, cooling system, and future expansion plan.
Q4: What safety features should a heavy-duty foundry furnace have?
A4: A heavy-duty foundry furnace should have stable hydraulic tilting, anti-drop protection, leakage alarm, PLC control, reliable cooling water circuit, water pressure protection, and convenient maintenance access.
Q5: How does magnetic yoke design help an induction furnace?
A5: Magnetic yoke design helps an induction furnace reduce magnetic leakage, improve thermal efficiency, increase output, and support more stable performance during heavy-duty metal melting.
