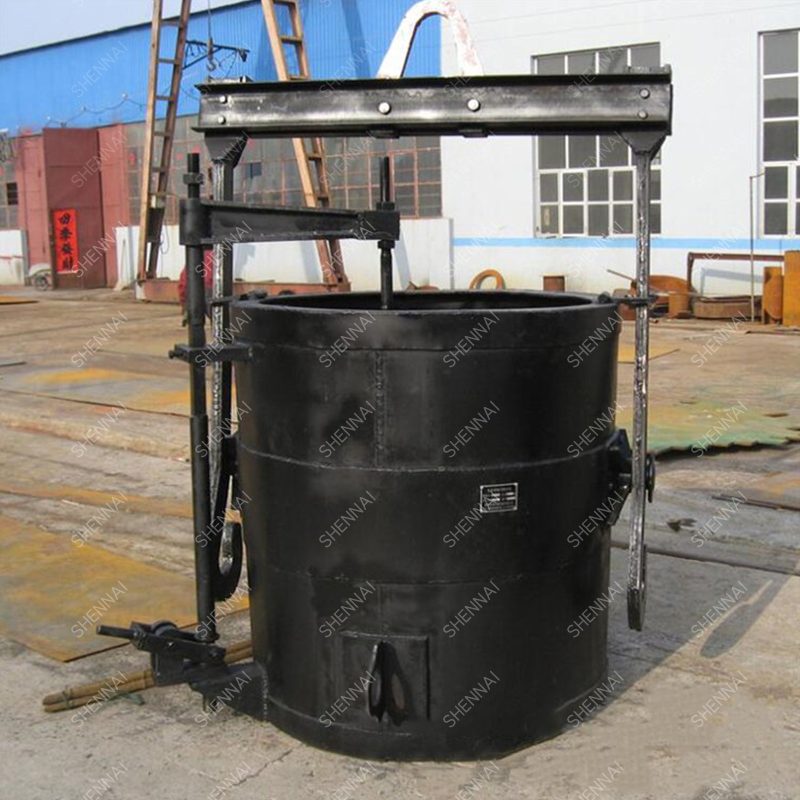

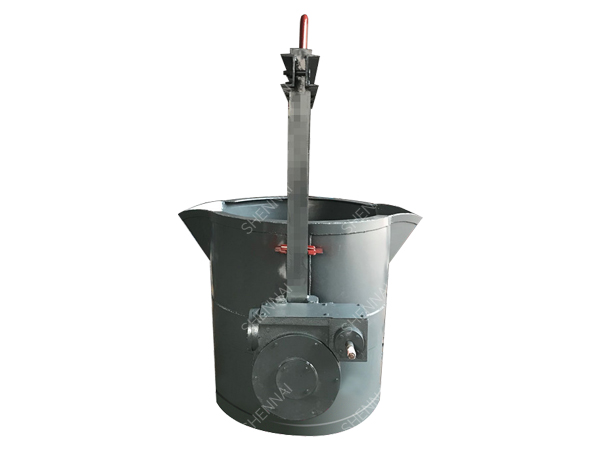

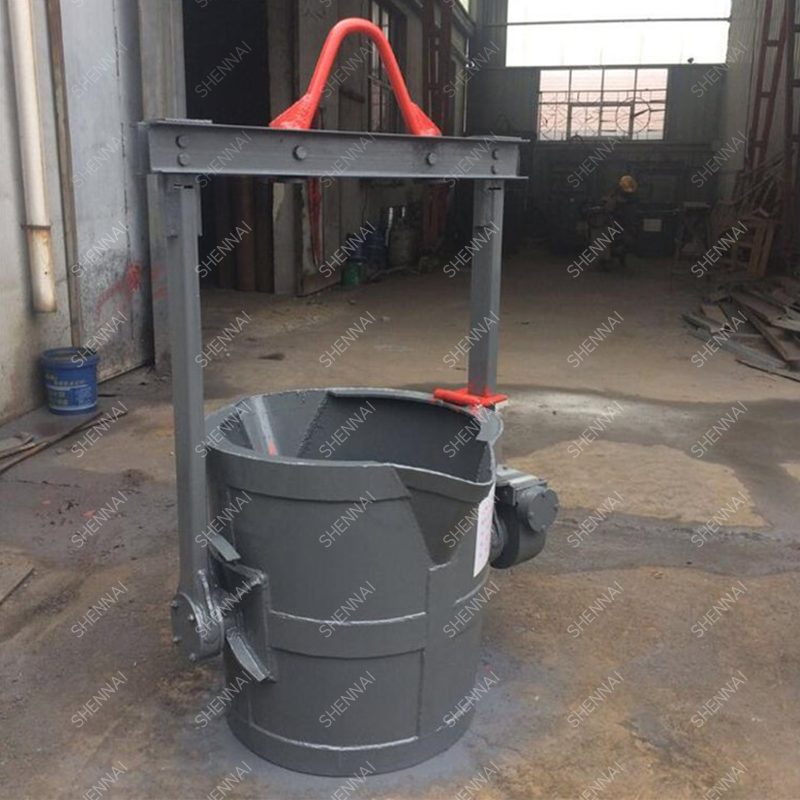

Foundry Pouring Transfer Steel Iron Ladle

  • Type  Pouring Steel Ladle
  • Key Selling Points  Easy to Operate
  • Application  Cast ,foundry, forge,pouring
  • Iron ladle      0.3-30t
  • Steel ladle     0.5-30t
Chat Online Request A Quote
Product Catalog

Introduction

Application of casting iron ladle:

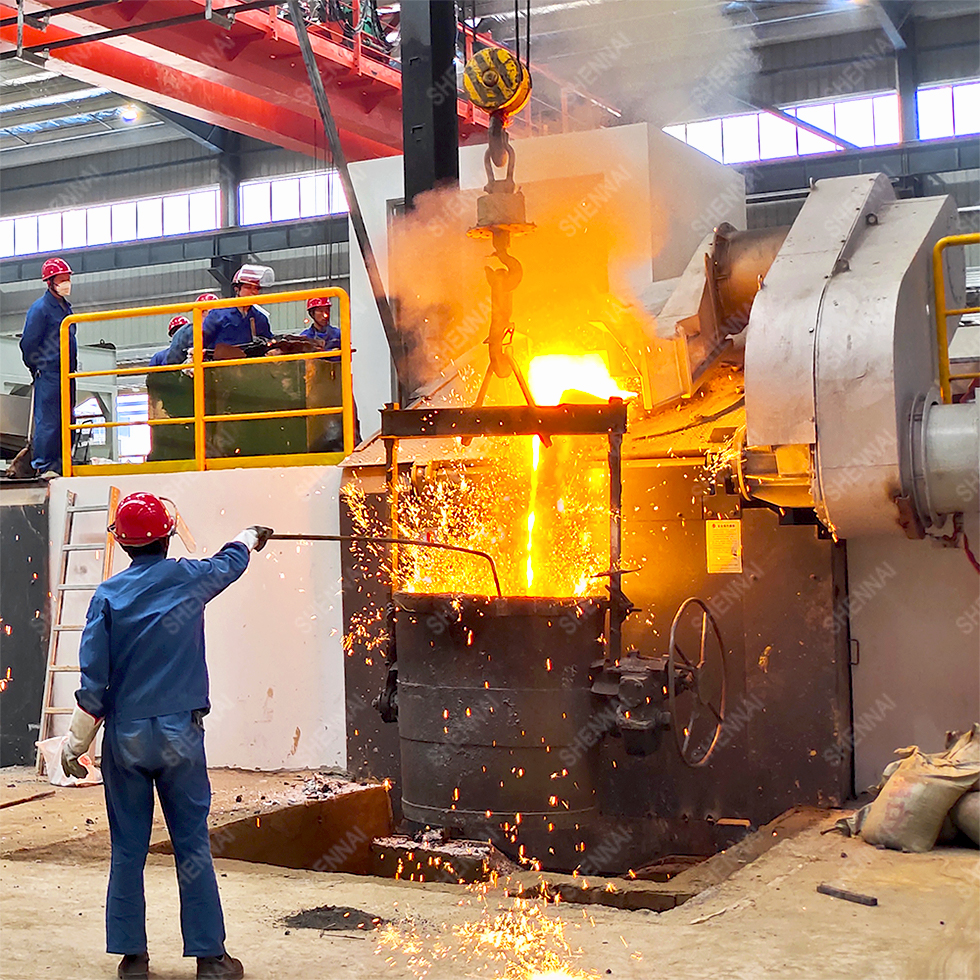

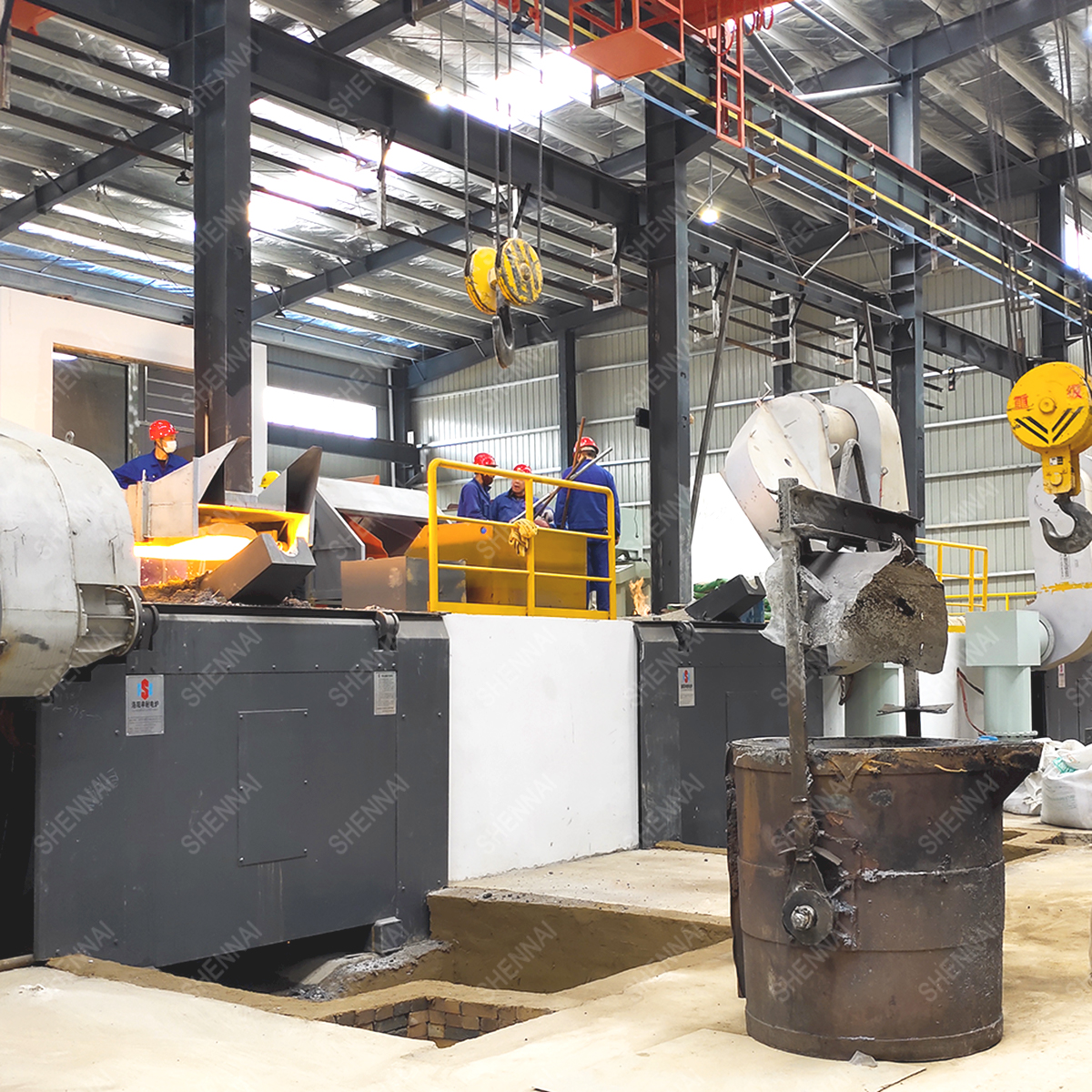

  • The ladle is used to transfer the molten metal liquid.
  • Lining material is of either non metal-stiking casting material or crucible type.

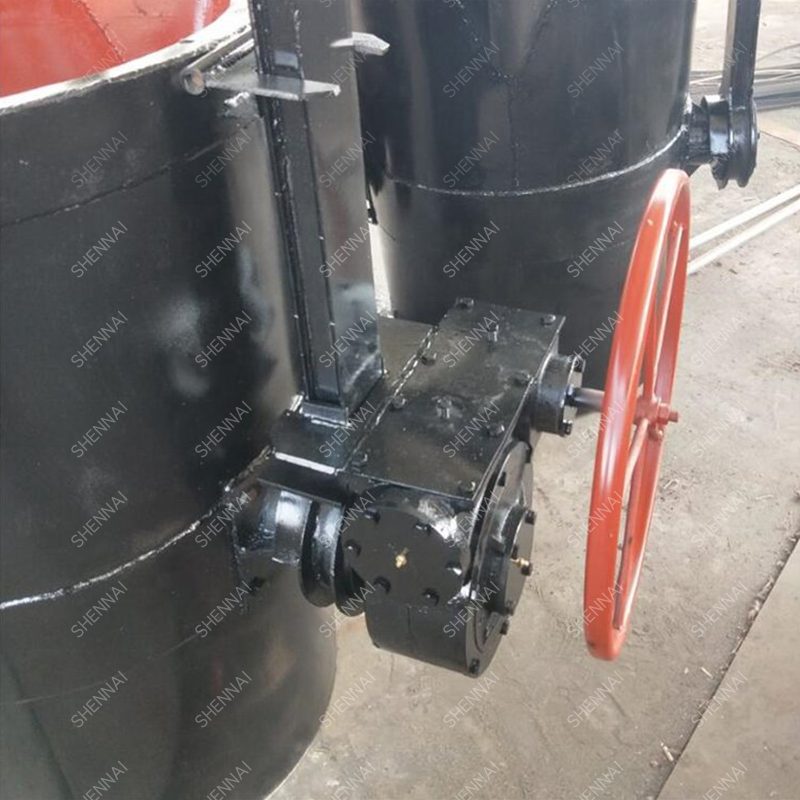

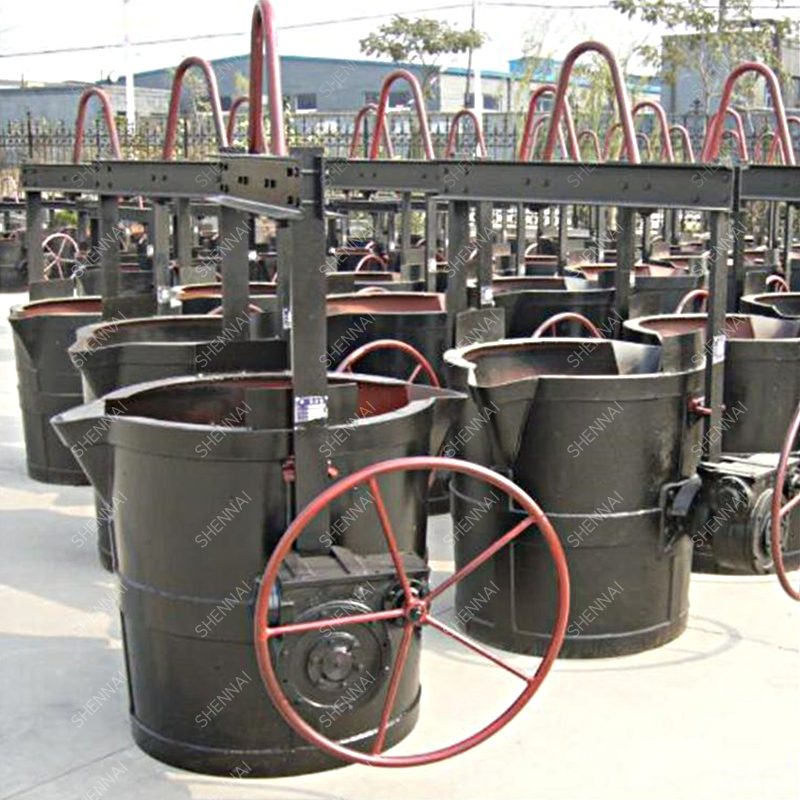

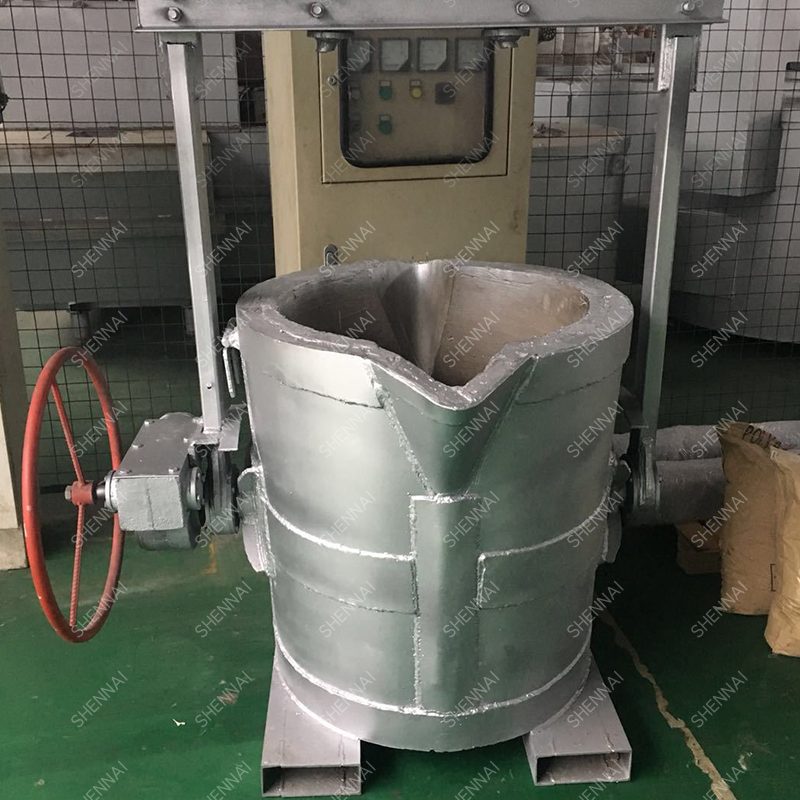

  • The tilting mechanism can be driven by the worm gear or planetary gearbox.

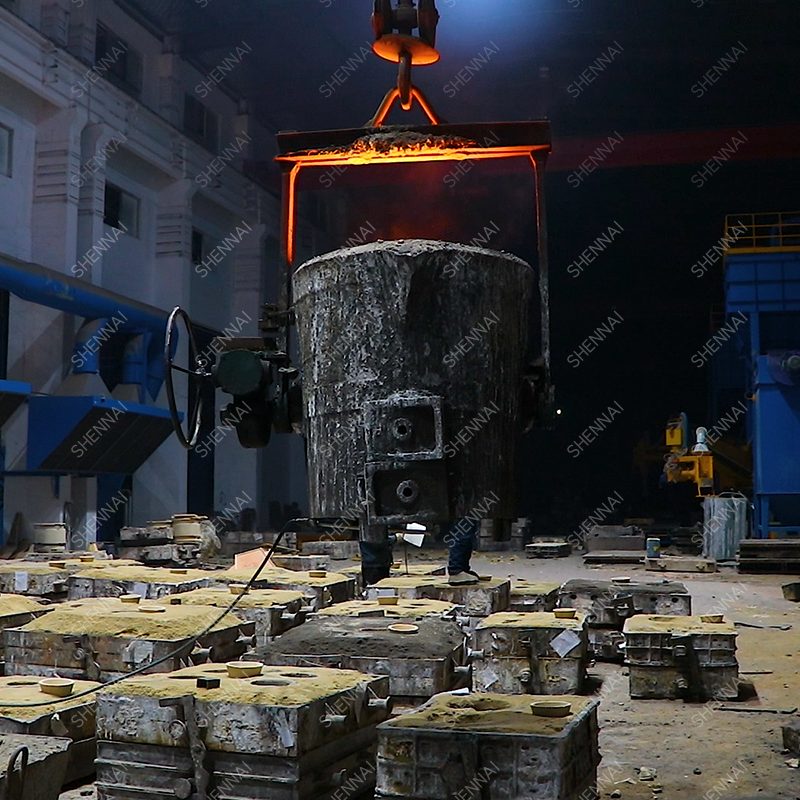

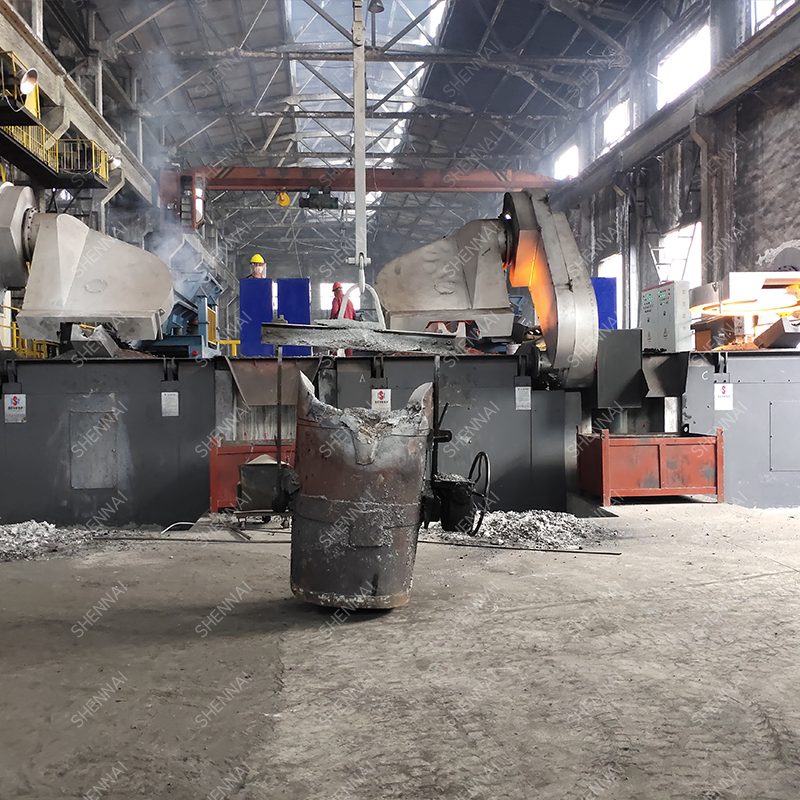

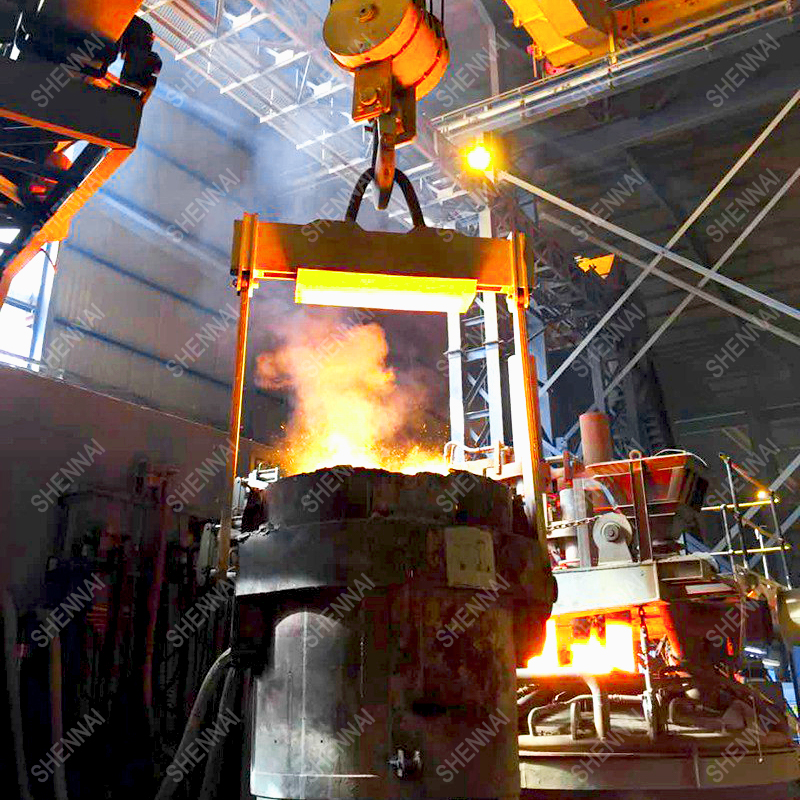

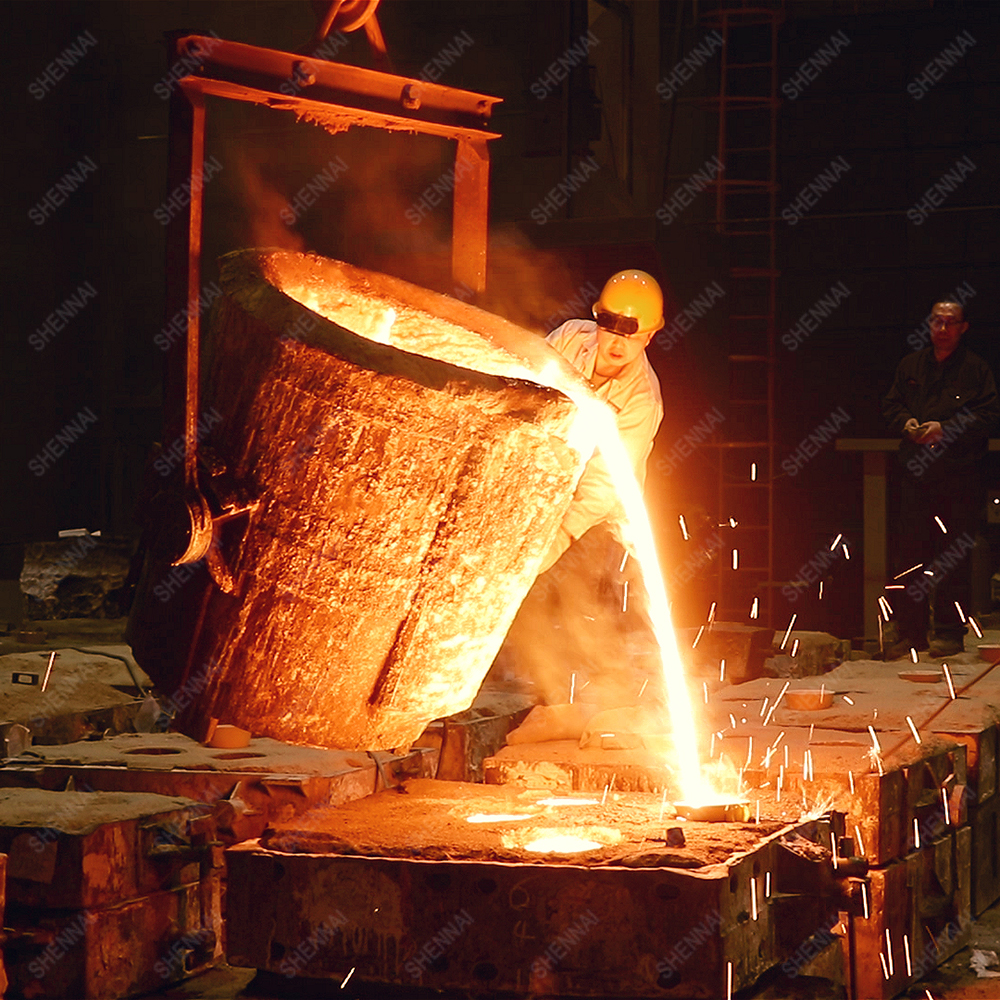

  • The ladle is mainly used for the pouring and processing of molten metal in the foundry, and it can also be used as a transfer bag.
  • We can design and manufacture your special ladle according to your company’s technical and technological requirements.

Parameter

Main Specifications
Capacity(kg) Outer diameter
Of mouth(φmm)		 Package
Height(mm)		 Dimensions
Length × width ×height(mm)
100 550 560 1130×710×1255
300 740 750 1320×910×1510
500 870 890 1490× 1070×1760
750 960 950 1570× 1180×1940
1000 1030 1020 1700×1310×2050
1500 1230 1220 1910×1460×2250
  • Iron ladle      0.3-30t
  • Steel ladle      0.5-30t

Features



Feature of casting steel ladle:

  • Reasonable choose the rotation center,convenient operation basic can compund when pouring is finished.
  • Adopt double worm wheel pair transmission.Althrough manufacturing demand is high,but flexible transmission,two-way reversible.
  • Enclosure is made of thicker steel plate,the bottom of the bag structure by adopting the combination of taper,bottom rim,welding tripe insurance,which extended the service life,the safety of the operator.
