Copper Ingot Casting Machine

  • Type   Straight equipment
  • Maximum width & length   1.2m (W), from 13m (L)
  • Equipment running speed   Adjustable from 0-6m/mim (0-30 spindles/min)
  • Custom lengths acceptable
  • Up to 10 tons per hour, the running speed is adjustable.

Introduction

  • Specializing in the production of copper ingots, aluminum, zinc ingot casting machines and other complete sets of metal smelting equipment, factory direct sales, welcome to visit the factory.
  • This equipment is an copper ingot casting machine. Of course, on the basis of the machine itself, changing the raw materials can also make  aluminum-zinc alloy casting machine.
  • It works on the principle of a die holder with grooves. It is characterized in that the die base is composed of a fixed die base and a movable die base. A column is arranged on the fixed die base, and a rotating arm is arranged on the column. The pressure head rises and falls, and the movable die seat is installed on the sliding part.
  • High production efficiency, can produce 8 tons of copper ingots per hour, the drive motor is a variable frequency motor, with good stability, automatic liquid filling, uniform ingot blanks, and low labor intensity. Using this equipment can increase the output by 20%-30%.
  • In addition, a manipulator stacker and back-end conveying equipment can be selected to form a complete ingot production line.

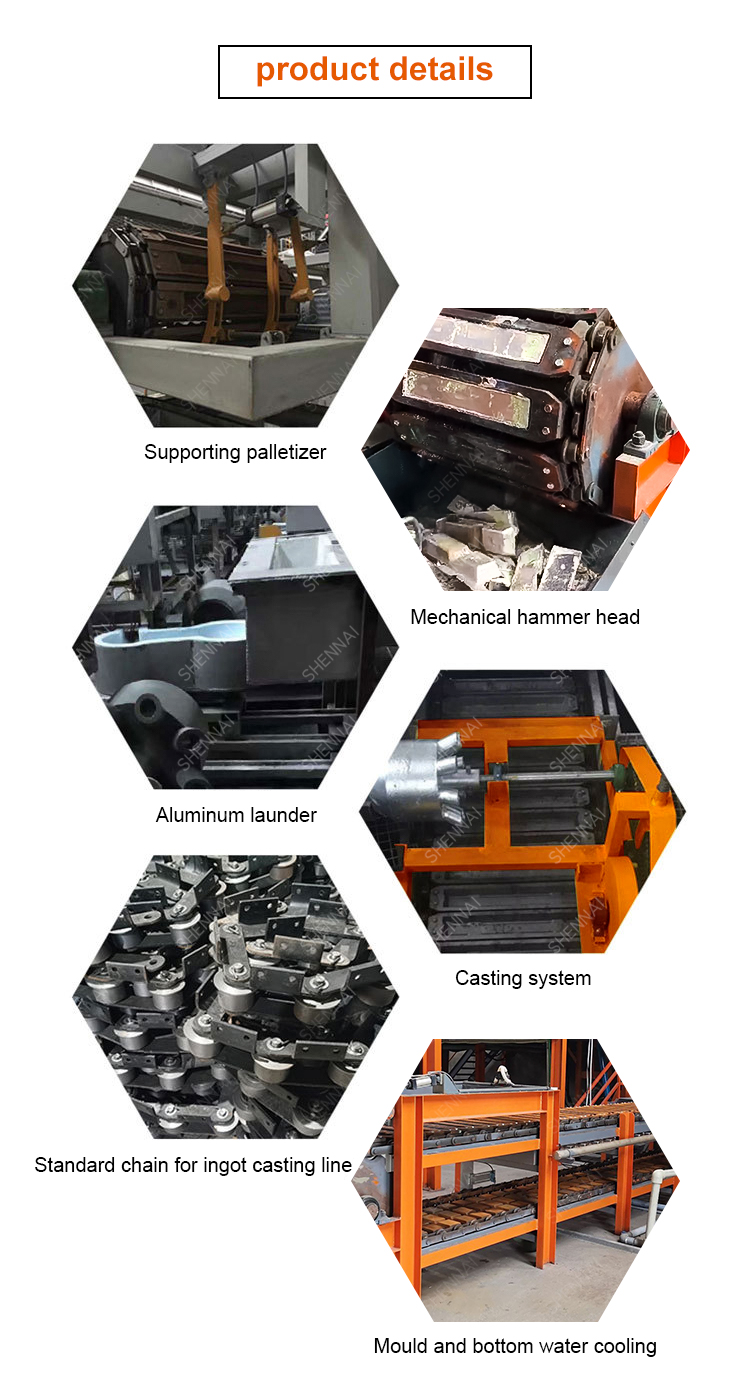

Details

Main technical parameters of copper ingot casting machine:

  • Equipment running speed: 0-6 m/min adjustable
  • Maximum production capacity: 10 tons/hour
  • Number of ingot molds: from 152 ingots
  • Total length of copper ingot production line: 5-32 meters.
  • Cooling methods include: natural cooling, water spray, and water immersion cooling at the bottom of the mold.
  • Ingot size: 6-30kg (ingot size can be designed by customers).

Melting & Casting Process

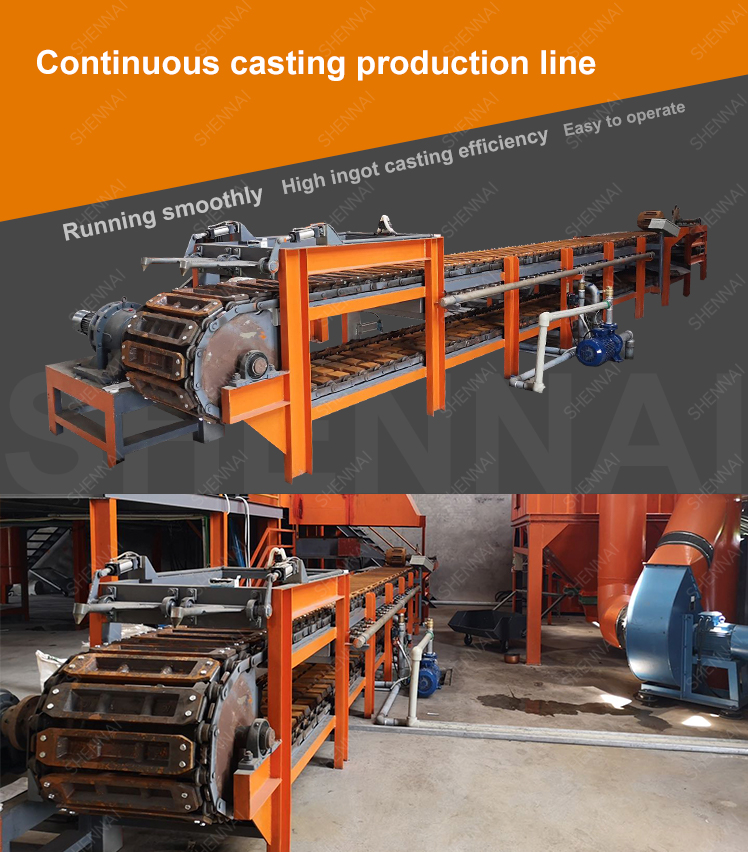

Copper Ingot Production Line

  • The copper ingot continuous casting machine is used to automatically control the production of various shapes of copper ingots, which can meet the requirements of continuous production 24 hours a day.

Features

  • The machine adopts chain-driven mold and shunt synchronous movement, which can meet the production requirements and meet the ingot casting requirements of various brands.
  • It adopts stepless adjustment for smooth operation, high efficiency, uniform weight, convenient operation and simple maintenance.
