Medium frequency furnace is one of the important processing equipment in the metallurgical industry.
Medium frequency furnace is one of the important processing equipment in the metallurgical industry. A large amount of flue gas dust will be produced during smelting, charging and tapping, among which the flue gas dust produced during smelting is the most serious. According to the operation process of the intermediate frequency furnace, selecting the intermediate frequency furnace dust remover to treat the flue gas generated in the smelting process of the intermediate frequency furnace is the best economic, reasonable and feasible option.
Features of intermediate frequency furnace dust remover:

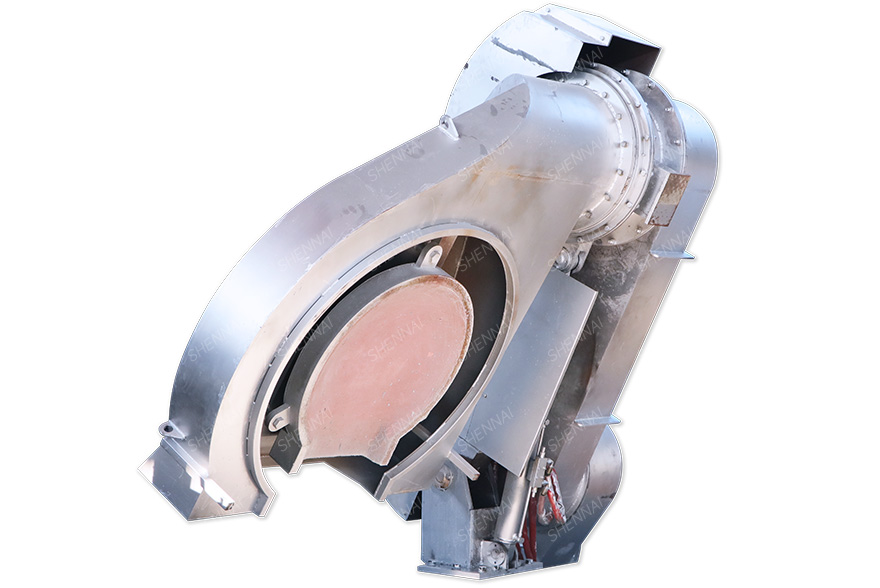

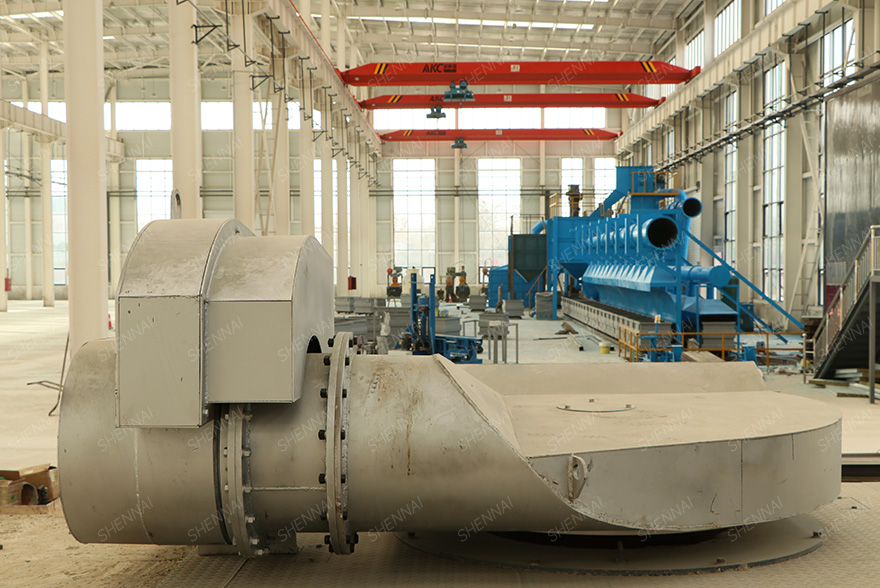

1. The rotary dust collecting hood is selected to collect dust without dead corners, and the dust removal effect is better;
2. Advanced feeding equipment is selected to solve the problem of difficult capture of flue gas during feeding;
3. Different structure combinations can be designed according to user requirements to achieve the best dust removal effect;
Structural features of dust remover of intermediate frequency furnace:

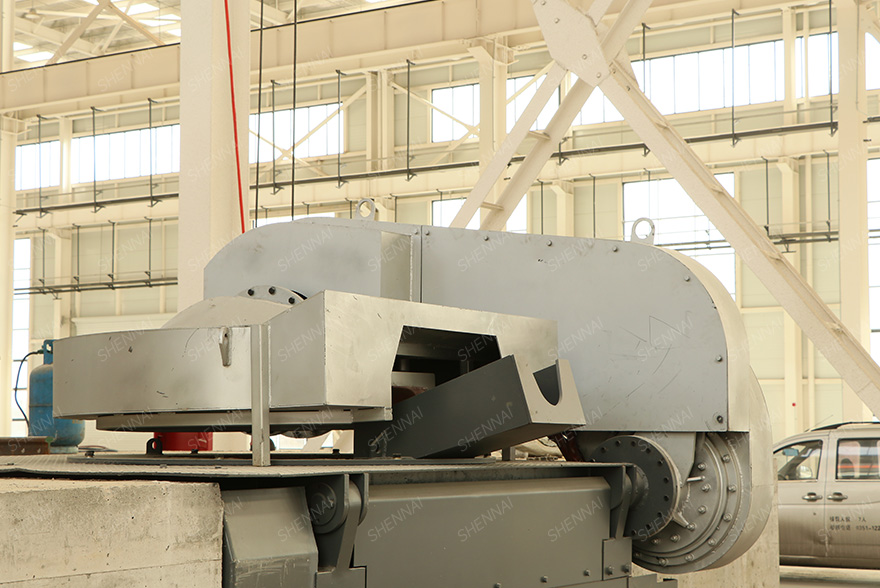

The intermediate frequency furnace flue gas capture system is composed of low movable dust cover, feeding equipment, tapping equipment and dust removal equipment. The low mobile dust cover covers the operation platform and tapping pit, so that the smelting and production process of the intermediate frequency furnace can be carried out in the low mobile dust cover, which realizes the effective collection of flue gas in the whole process.
During feeding, the feeding equipment is used for feeding, and the materials are filled up several times according to production needs, which solves the problem of difficult capture of flue gas during feeding; During tapping, the intermediate frequency furnace platform is turned over and directly goes out of the ladle on the tapping rail flat car. The tapping process is completed in the smoke hood, which overcomes the leakage of smoke during partial dust collection tapping.
Operating principle of intermediate frequency furnace dust remover:
The flue gas flow enters the air inlet channel from one end of the dust remover. The sectional area of the air inlet channel is designed as a decreasing section according to the decreasing rate of the flow in the channel. The flue gas flow enters the dust removal bag bin through the inlet valve of the bag bin which is connected with the dust removal bag bin. The purified air filtered by the bag is collected from above the bag to the net gas transition channel above the bag bin, and is discharged through the outlet channel of the dust remover through the transition channel.
The uniform temperature settlement section is set to avoid the direct scouring of high-temperature flue gas on the dedusting bag and improve the service life; The load of filter bag can be reduced by equalizing the pressure in the settling section, and the local resistance coefficient and flow rate of each section from the air inlet to the dedusting bag, from the patterned plate to the air outlet are low, so the resistance loss is low.
Luoyang Shennai intermediate frequency furnace adopts cyclone dust remover, which has low noise and good dust removal effect. It can effectively capture the smoke and dust generated in the smelting process. Users are welcome to purchase.
