Intelligent Induction Heating Power Supply

The intelligent induction heating power supply series can help you realize various industrial heating work, and it is safe, environmentally friendly, efficient and energy-saving.

With the coaxial transformer with a unique invention patent, 100% conversion of magnetic field energy is achieved. The compact coaxial transformer is connected to the induction heating power supply through a flexible coaxial water-cooled cable, which can easily perform induction heating on inaccessible workpieces.

The perfect limiting protection measures of the induction heating power supply enable the equipment to maintain continuous and safe operation under various working conditions.

The intelligent induction heating equipment can adjust, monitor and control the temperature control, and fully realizes the timing and temperature heating.

The rich settable functions and multiple operation control modes make the equipment suitable for the process requirements of almost all induction heating occasions. The fully digital structure operation interface is simple and easy to understand, and you can learn it now.

If you have special needs, we can also tailor-make the most suitable induction heating solution for you and provide you with the most enthusiastic, professional and reliable technical services.

Improve Productivity

Fast, easy to use, precise control, less rework and higher productivity.

Quality Assurance

The operation interface provides multiple parameters for users to preset to achieve accurate repeatability of the heating cycle.

Environmental Friendliness

There is no longer a lot of smoke and heat radiation at the heating site. We give you a more comfortable and environmentally friendly working environment.

Wide Applicability

One machine is compatible with a variety of induction coils, which can achieve heating of workpieces of different shapes and sizes.

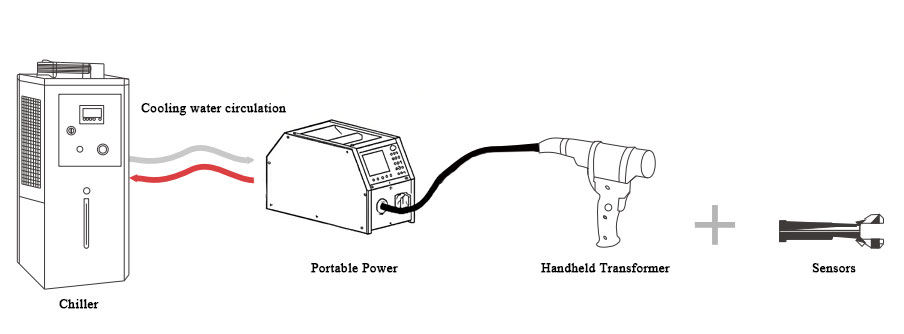

Device Connection Diagram

Handheld transformer

The handheld transformer is designed to be connected with the coaxial transformer, which is convenient for manual operation and linkage with the robot to realize automated production

The induction coil/inductor (detachable) is easy to remove and install from the handheld transformer, and can be adapted to coils for different field applications

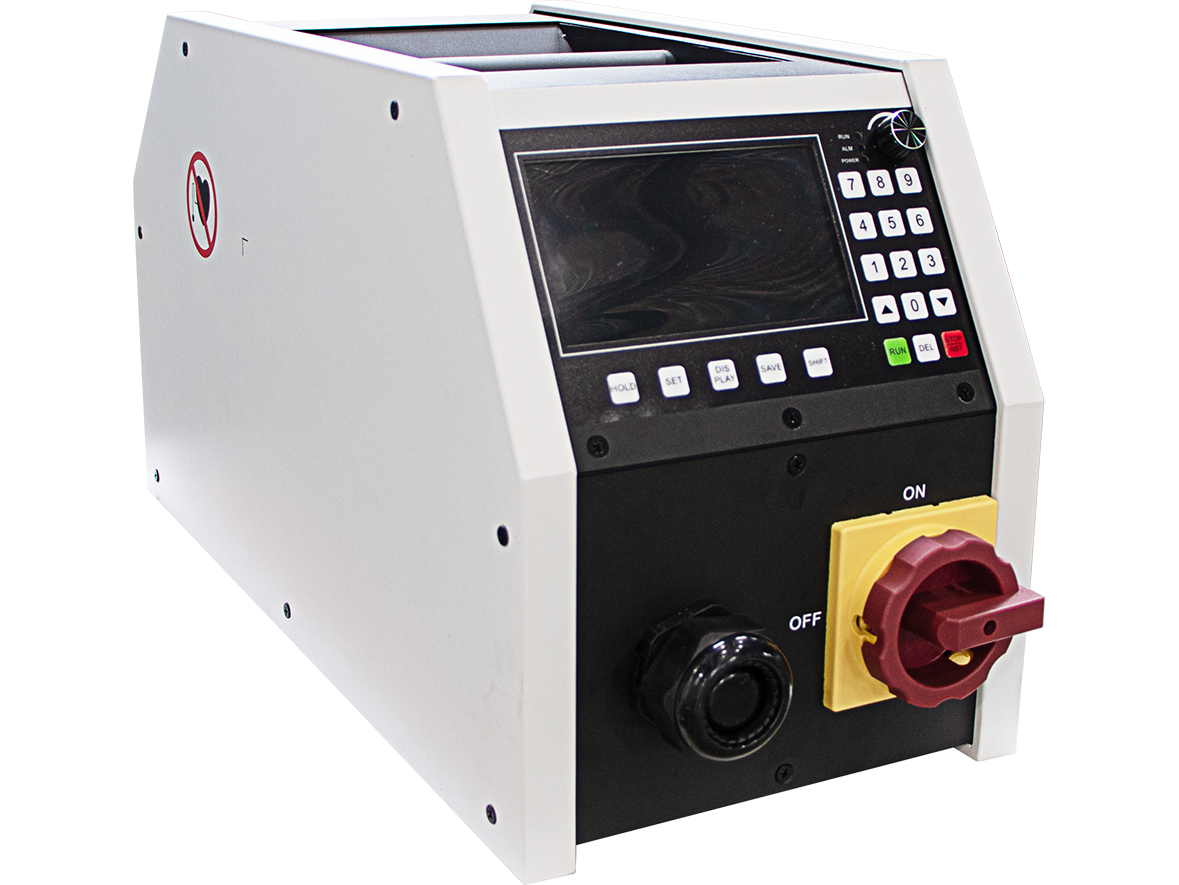

The induction heating power supply adopts silicon carbide module design, programmable controller and LCD data monitoring, flexible power adjustment and adaptive broadband adjustment

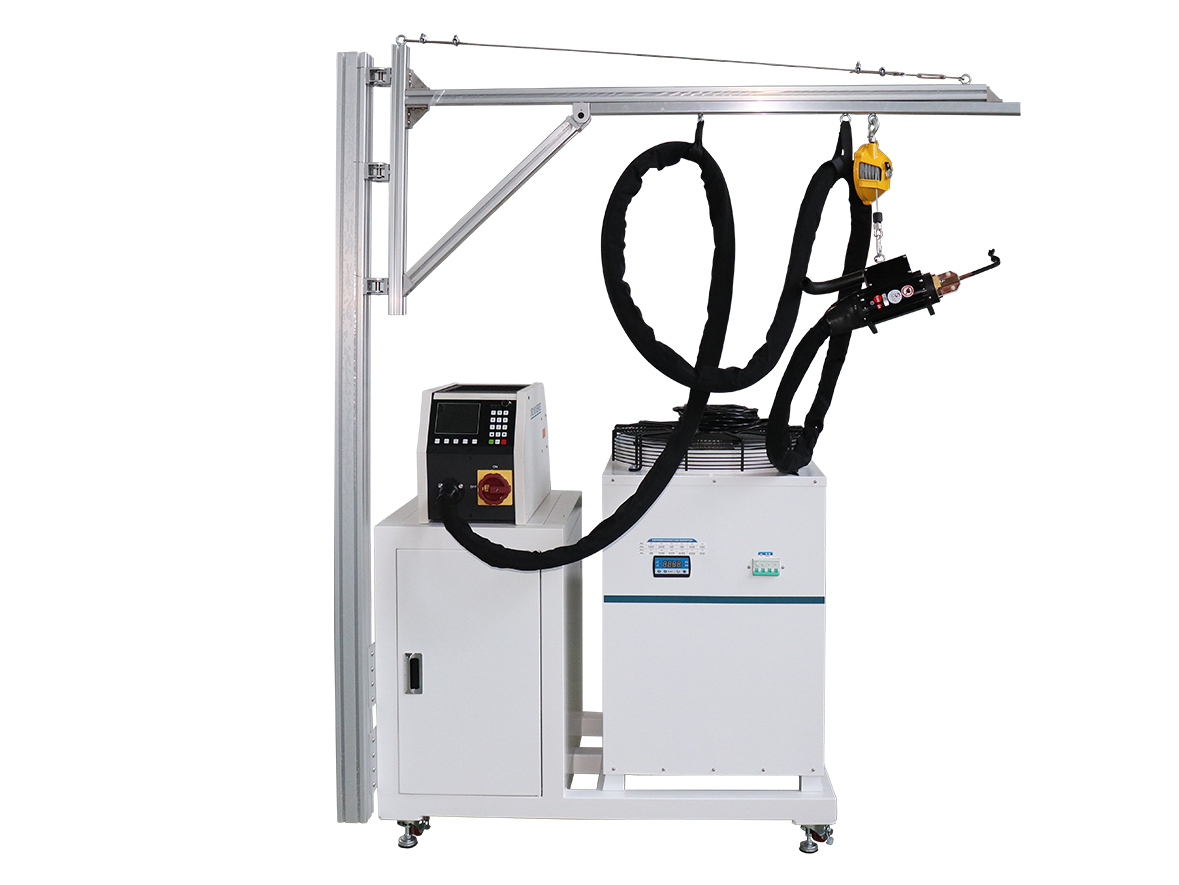

Based on the combination of power unit and chiller, two options are provided: Portable/Cabinet type

Portable/Cabinet type: External chiller equipment is required

Non-standard customized equipment can be provided according to the parameters you provide.

High Efficiency, Environmental Protection, Intelligence

High Efficiency: electric heat conversion rate>85%

Environmental protection: Zero pollution, zero emission

Intelligence: PID temperature closed loop control to ensure accurate temperature control

Wide Range Of Applications

Can adapt to various loads. TS series is widely used in: Annealing, brazing, quenching, curing, thermal disassembly, straightening and leveling, thermal separation of coatings and other fields

Can heat all metals: Including gold, silver, copper, iron, aluminum, titanium, zinc, nickel, etc.

Human-Machine Interactive Operating System

Humanized man-machine interface (MMI)

Chinese and English bilingual optional

Built-In Multiple Control Modes And Control Interfaces For Easy Integration

The remote control unit can accurately control by sending feedback signals to the microprocessor

0-10V, 4-20mA analog, RS485 communication, mobile Internet remote operation

P ID temperature closed-loop control mode, power control mode

Can be quickly and easily integrated into the automatic return production line

Operation Parameter Monitoring And Fault Protection

Display of operating status, fault code display, alarm indication, automatic emergency stop for faults

35 Fault codes and 11 warning codes: Overcurrent, overvoltage, phase loss, short circuit, leakage, overload, radiator high temperature, cooling failure, communication fault alarm, etc.

Fault record, convenient for operators to maintain and handle faults in time

Multiple Heating Modes

Constant power mode

Time VS power heating mode

Multi-stage heating mode
