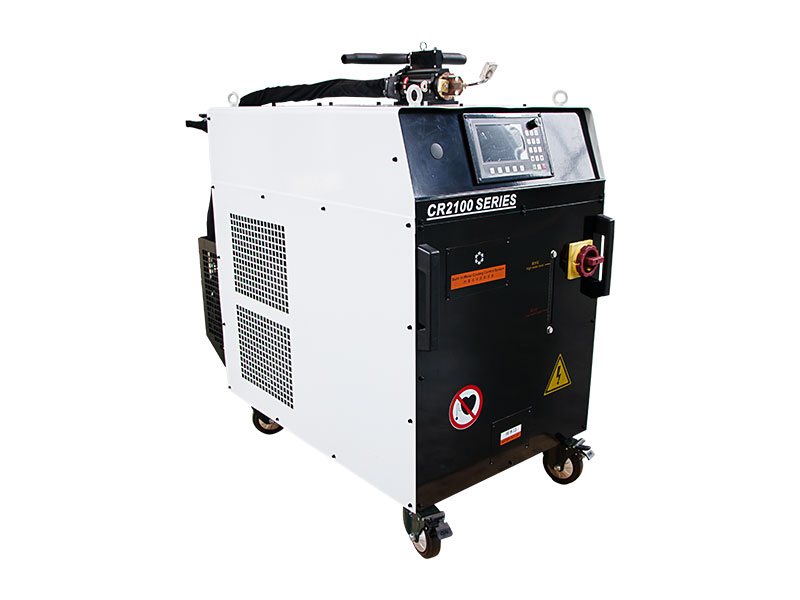

Induction Heating All-in-One Machine

The new generation of induction heating equipment, which integrates coaxial transformer + induction heating power supply and chiller, has the characteristics of small size, compact structure and easy mobility, which means that induction heating work can be carried out with maximum flexibility. Induction brazing, annealing, quenching, thermal disassembly and assembly have also become very convenient and simple.

High Temperature: The heating temperature can reach more than 1500 degrees.

Fast Heating: Quickly reach the target temperature.

Applicable Materials: Suitable for various metal materials such as stainless steel, copper, aluminum, zinc, tin, titanium, etc.

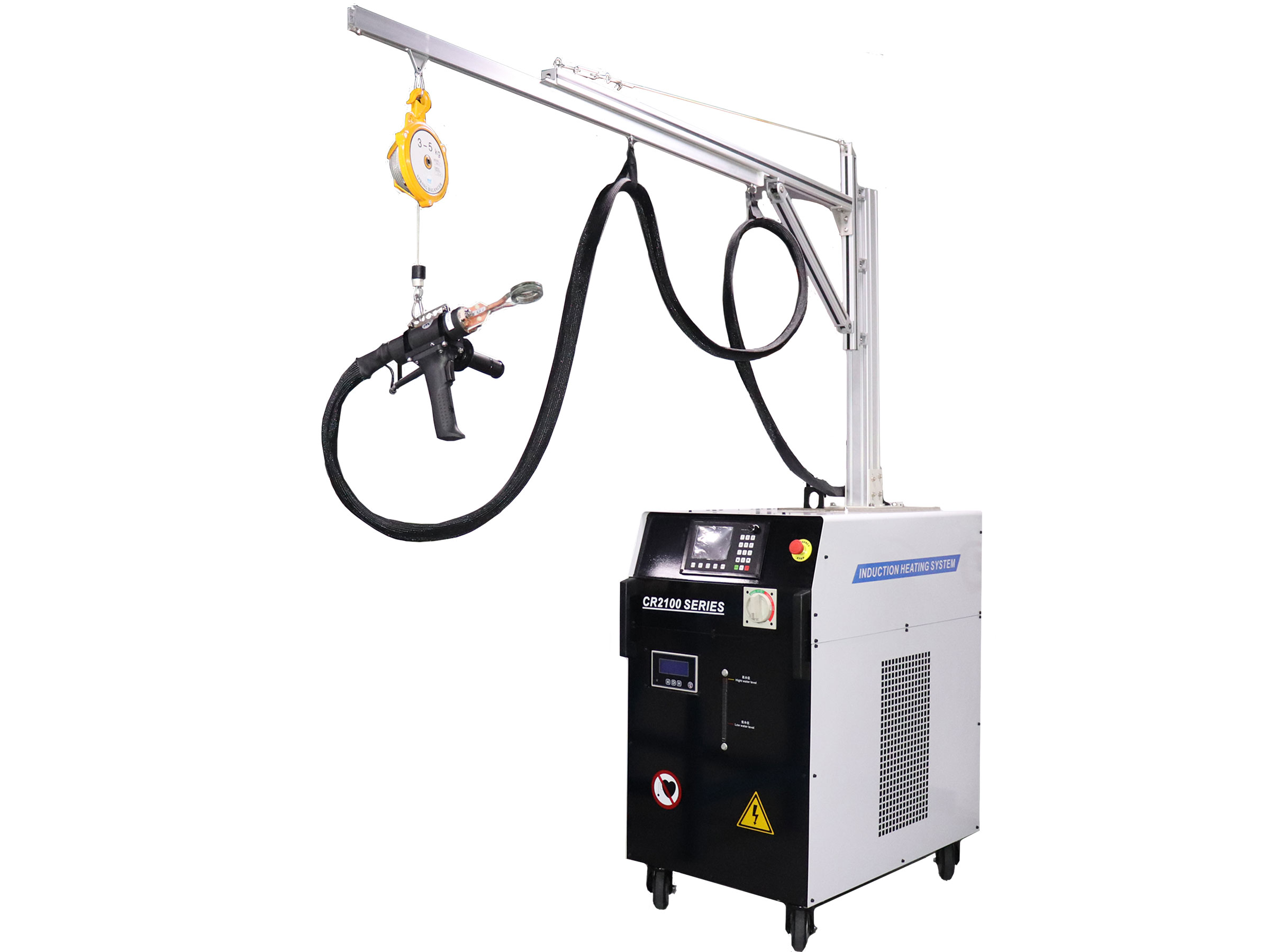

The handheld coaxial transformer is easy to work with, and can also be automatically integrated into the robot arm.

Replaceable Coil/Inductor: The induction coil/inductor is customized into different shapes and sizes, and can be easily removed from the HHT to replace another coil.

Enable Temperature Control: Use TC or infrared probe to achieve precise temperature control during heating. Suitable for butt welding of copper tubes, copper tubes and steel tubes, and steel tubes and steel tubes;

Fast temperature PID control + energy control + temperature control to ensure the consistency of butt welding;

Small size, light weight, high protection, high precision, portable, simple and more convenient;

The trolley can be equipped with positioning casters, which can be used in fixed places or mobile;

Typical Applications: Welding of refrigerator and air-conditioning compressor pipes, welding of water heater copper tubes, welding of cooler copper tubes, etc.

Improve Productivity

Fast, easy to use, precise control, less rework and higher productivity.

Quality Assurance

The operation interface provides multiple parameters for users to preset to achieve accurate repeatability of the heating cycle.

Environmental Friendliness

There is no longer a lot of smoke and heat radiation at the heating site. We give you a more comfortable and environmentally friendly working environment.

Wide Applicability

One machine is compatible with a variety of induction coils, which can achieve heating of workpieces of different shapes and sizes.

High Efficiency, Environmental Protection, Intelligence

High Efficiency: electric heat conversion rate>85%

Environmental protection: Zero pollution, zero emission

Intelligence: PID temperature closed loop control to ensure accurate temperature control

Wide Range Of Applications

Can adapt to various loads. TS series is widely used in: Annealing, brazing, quenching, curing, thermal disassembly, straightening and leveling, thermal separation of coatings and other fields

Can heat all metals: Including gold, silver, copper, iron, aluminum, titanium, zinc, nickel, etc.

Human-Machine Interactive Operating System

Humanized man-machine interface (MMI)

Chinese and English bilingual optional

Built-In Multiple Control Modes And Control Interfaces For Easy Integration

The remote control unit can accurately control by sending feedback signals to the microprocessor

0-10V, 4-20mA analog, RS485 communication, mobile Internet remote operation

P ID temperature closed-loop control mode, power control mode

Can be quickly and easily integrated into the automatic return production line

Operation Parameter Monitoring And Fault Protection

Display of operating status, fault code display, alarm indication, automatic emergency stop for faults

35 Fault codes and 11 warning codes: Overcurrent, overvoltage, phase loss, short circuit, leakage, overload, radiator high temperature, cooling failure, communication fault alarm, etc.

Fault record, convenient for operators to maintain and handle faults in time

Multiple Heating Modes

Constant power mode

Time VS power heating mode

Multi-stage heating mode
