Well Type Resistance Furnace

  • Application  Metal heat treatment
  • Type  Well type resistance heat treatment furnace
  • voltage  380V

Product Description

Characteristics of well resistance furnace:

  • It is not easy to deform large shaft parts and pipe fittings when vertical lifting.
  • Adopt new environmental protection compound furnace lining, heat preservation effect is good, energy saving is better than other furnace type.
  • The furnace temperature using microcomputer intelligent instrument, SCR power regulation, pressure regulation, can automatically complete the temperature, heat preservation, cooling and other processes, can use programming control, automatic control box record storage and operation process, with group control, networking and other functions.

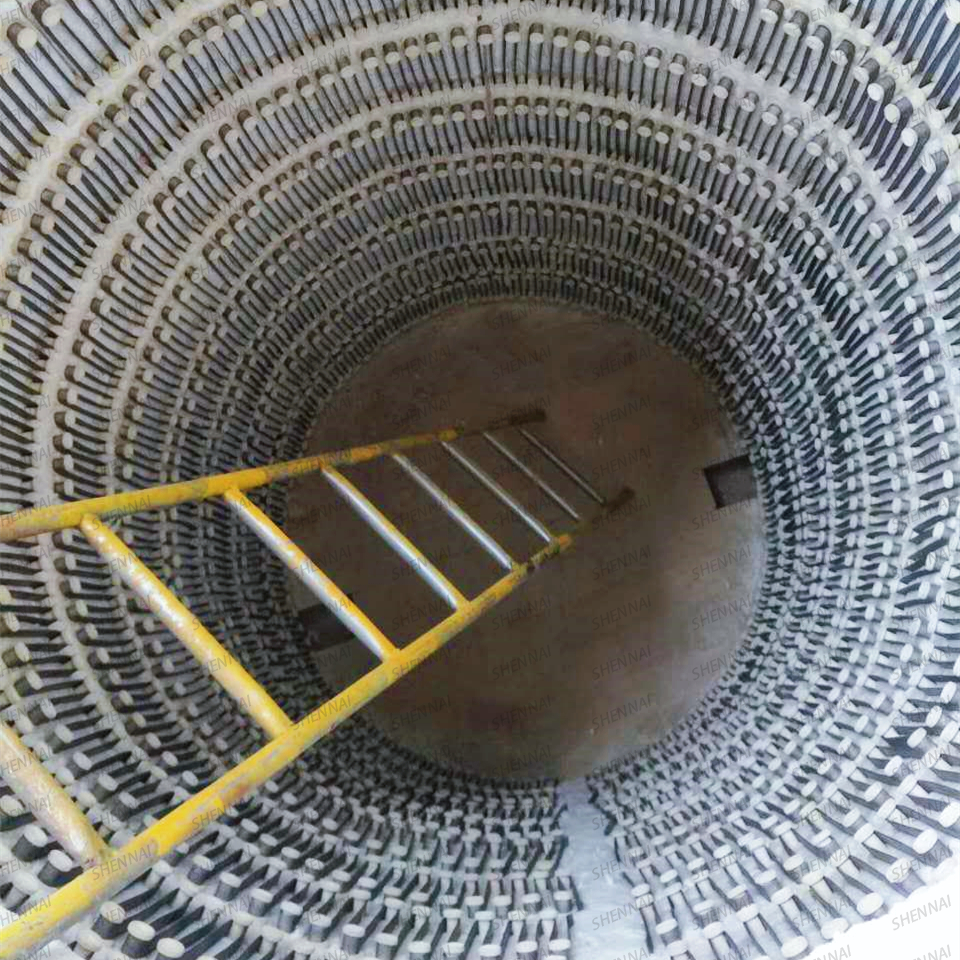

  • Well type furnace structure is mainly composed of furnace body, heating element and temperature control system.
  • It is mainly used for normalizing, annealing, tempering and other heat treatment of alloy steel, high speed steel, high manganese steel, high chromium steel, shaft, pipe and other metal materials and mechanical parts in general atmosphere or simple protection.

Technical Parameter

↔  Swipe left and right

Well Type Furnace Parameters
Model RJ2-850-9 RJ2-550-9 RJ2-340-9 RJ2-380-9 RJ2-260-9
Rated power(KW) 850 550 340 380 260
Rated voltage(V) 380 380 380 380 380
Highest temperature(℃) 950 950 950 950 950
Working temperature(℃) 950 950 950 950 950
Number of phase 3 3 3 3 3
Chamber size Diameter φ6000 φ4500 φ2200 φ2000 φ1800
Deep 1500 1500 2000 2400 2000
Heating element connection Y Y YY YY YY
Temperature rise time of empty furnace ≤2.5 ≤2.5 ≤3 ≤2.5 ≤3

↔  Swipe left and right

  • Basic parameters for reference only
  • If you want to know more, you can leave a message telling us what you need


Customer Site


  • Our Service
    Providing one-stop turn-key service of desianing, manufacturing, installation, commissioning
    Providing professional proposal for customers investment
    Providing foundation layout
    Providing arrangement drawing for customers project
    Providina technical support
    Providing after-service trackina service
    Providing quality warranty
