Infrared temperature sensor, temperature controller and water cooling system can also optional.

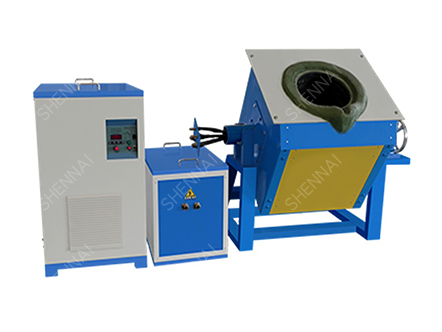

Three types of induction melting furnaces can be selected according to the way of pouring out, they are tilting furnace, push-up furnace and stationary furnace.

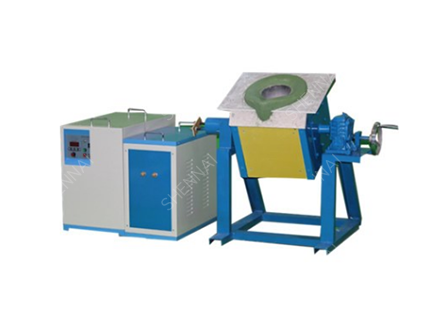

According to the method of tilting, tilting furnace is divided into three kinds: Manual tilting furnace, Electrical tilting furnace and Hydraulic tilting furnace.
IGBT induction melting furnace are mainly used for the melting of gold, silver, platinum, copper, brass, bronze, zinc, steel, stainless steel, iron, aluminum and alloy materials, etc. melting capacity can be from 0.1-250kg
The table below lists the main models and recommended maximum melting abilities. First time About 50 to 60 minutes are needed to finish one melting process at cool status of the induction furnace, at hot status of the induction furnace, about 30 minutes are needed.
↔ Swipe left and right
Max input power
Smelting capacity of commonly used materials
Steel ,iron , stainless steel
Copper ,silver ,tin
Aluminum and aluminum alloy
↔ Swipe left and right
Basic parameters for reference only
If you want to know more, you can leave a message telling us what you need
IGBT Induction melting furnace selling point:
Adopt Simens IGBT power device.
Fast heating: the fastest heating is less than 1 second, and the heating speed can be adjusted and controlled.
It has good Electromagnetic stirring stirring effect, which is conducive to the temperature of the smelting metal and the uniformity of the structure, which is beneficial to scumming and reducing impurities.
The frequency range can be from 1KHz to 30KHz, and the induction coil and matching capacitor box can be designed according to the specific requirements according to the melting amount.
High heating efficiency and low noise during operation.
Providing one-stop turn-key service of desianing, manufacturing, installation, commissioning
Providing professional proposal for customers investment
Providing foundation layout
Providing arrangement drawing for customers project
Providina technical support
Providing after-service trackina service
Providing quality warranty
Model SN – 80 AB Power 80 KW Frequency 30-80 KHZ Voltage Three-phase 380V 50/60Hz Application Small hardware heating applications, tool welding, diamond tool welding, small parts heat treatment, precious metals such as gold, silver and a small amount of melting, indicating heat treatment, etc
