Electric Resistance Furnace

  • Application  Metal heat treatment
  • Type  Trolley type resistance heat treatment furnace
  • Voltage  380V


Product Description

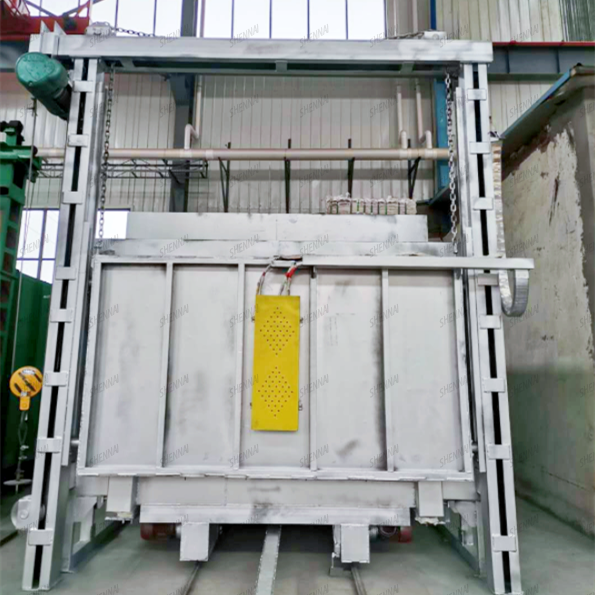

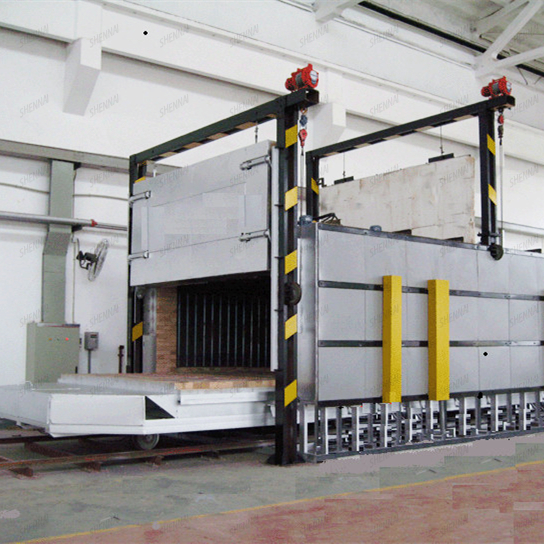

Trolley type furnace:

  • Furnace chamber consists of high-purity Al2O3 ceramic fiber material, no powder pulled off under high temperature. With material’s low heat capacity, the machine can save over 50% energy.
  • Furnace door movement is parallel to the front face, convenient for user to operate.
  • Machine has a high heating rate. It takes 15~30 minutes to rise from room temperature to 1000ºC.
  • Temperature controller is programmable with 2 groups/16 segments and able to set temperature curve. PID control system ensures high precision ( ±1ºC) and constant temperature requirement.
  • When temperature exceeds the set value, furnace sends out audible and visual alarm, and stops heating.


Scope of application:

  • It is mainly used for heat treatment of large high chromium and high manganese steel castings, rolls, pressure vessels, slewing bearings, large shafts and various mechanical parts and die materials.


Characteristics of trolley resistance furnace:

  • Large loading capacity, high production efficiency, low operating cost, large heat treatment ability.
  • Furnace type can be designed for furnace fixed, furnace body mobile.
  • Electric furnace lining adopts full fiber structure, improve heat preservation performance of furnace body, save energy, reduce production cost.
  • The furnace temperature using microcomputer intelligent instrument, SCR power regulation, pressure regulation, can automatically complete temperature, heat preservation, cooling and other processes, can use programming control, automatic control box record storage and operation process, with group control, networking and other functions.


Technical Parameter

↔  Swipe left and right

Model RT4-30-9 RT4-65-9 RT4-75-9 RT4-90-9 RT4-105-9
Rated power(KW) 30 65 75 90 105
Rated voltage(V) 380 380 380 380 380
Highest temperature(℃) 1000 1000 1000 1000 1000
Working temperature(℃) 950 950 950 950 950
Frequency(Hz) 50 50 50 50 50
Number of phase 3 3 3 3 3
Chamber size-LWH 950*500*450 1200*600*4500 1500*750*600 1800*900*600 1800*900*650
Heating element connection Y Y Y Y Y
Temperature rise time of empty furnace ≤2.5 ≤2.5 ≤2.5 ≤2.5 ≤2.5
Empty furnace loss power(kw) ≤11 ≤11 ≤18 ≤19 ≤27
Temperature control precision(℃) ±1 ±1 ±1 ±1 ±1
Furnace temperature uniformity(℃) ±8 ±8 ±8 ±8 ±8
Maximum loading capacity(kg) 500 1000 15000 2500 3000

↔  Swipe left and right

  • Basic parameters for reference only
  • If you want to know more, you can leave a message telling us what you need

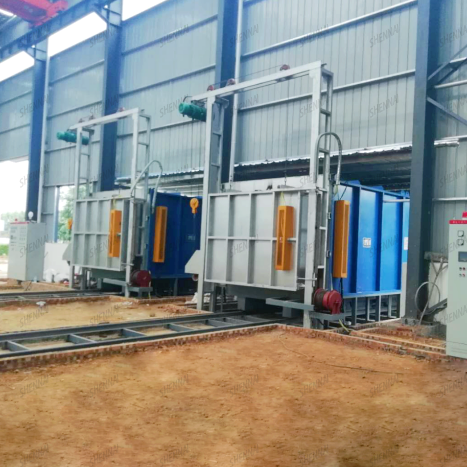

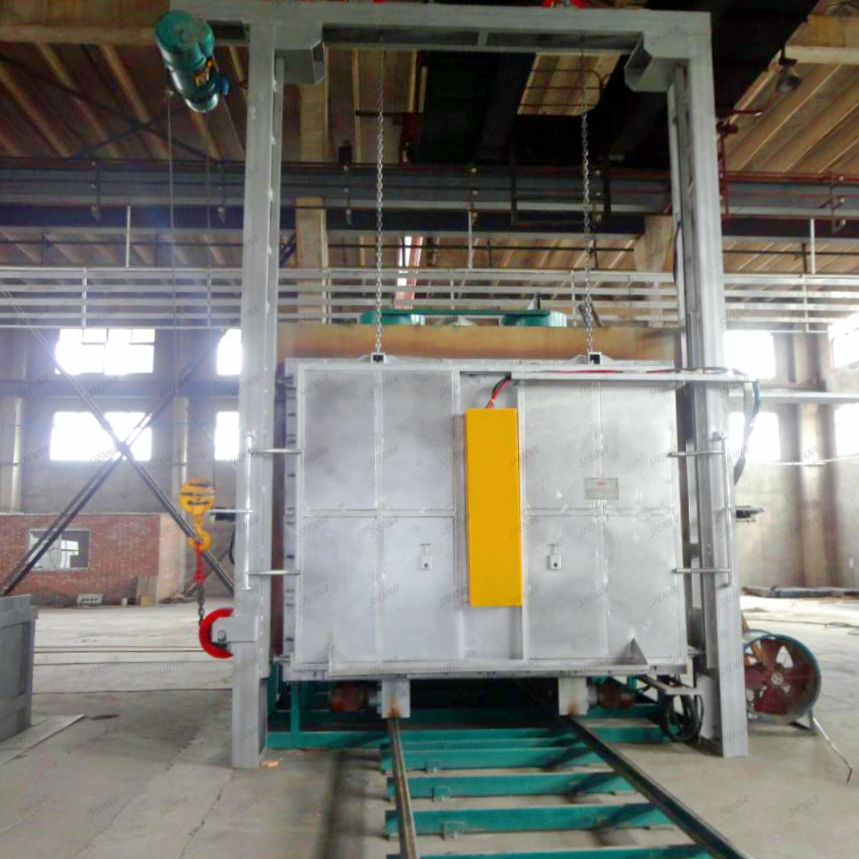

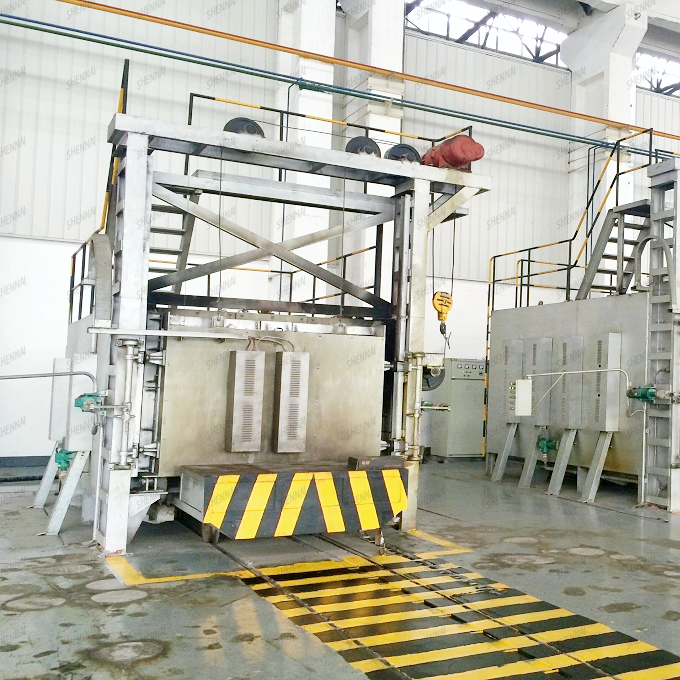

Customer Site


  • Our Service
    Providing one-stop turn-key service of desianing, manufacturing, installation, commissioning
    Providing professional proposal for customers investment
    Providing foundation layout
    Providing arrangement drawing for customers project
    Providina technical support
    Providing after-service trackina service
    Providing quality warranty
